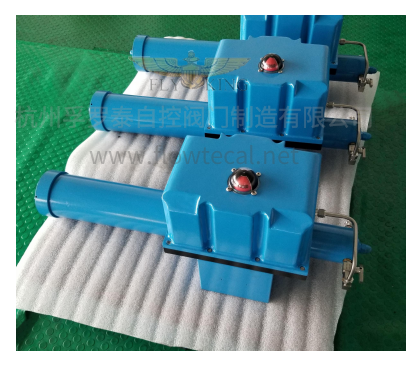

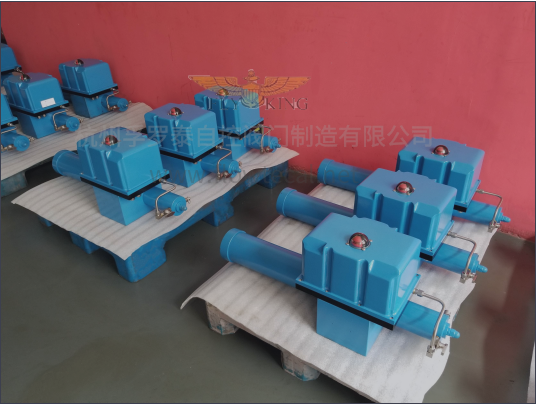

I TL-S series micro hydraulic power unit technical parameters
Brief introduction of the function:
control technology, to adapt to the valve electro-hydraulic control and the development of micro hydraulic power unit;micro power unit can be divided into AC220V and DC24V power supply options, the performance and quality of the international advanced level.Both opening and closing of double acting power unit TL-D are driven by oil pressure.The single acting power unit TL-S is turned on or off by the oil pressure, and the other stroke is reset by the spring. Intelligent electro-hydraulic actuator (TJ) can adjust valve opening degree according to 4 ~ 20mA control signal. All the power units mentioned above can realize explosion-proof design.
1）Protection level: IP66 is provided. IP68 can be specially designed.
2）Ambient temperature :-20 ~+80℃
3）Cable interface: sealing cap thread M20*1.5
4）Working pressure :110Bar Maximum pressure :160Bar
5）Working oil :32# hydraulic oil or homogeneous product
6）Oil tank capacity :300~600cc

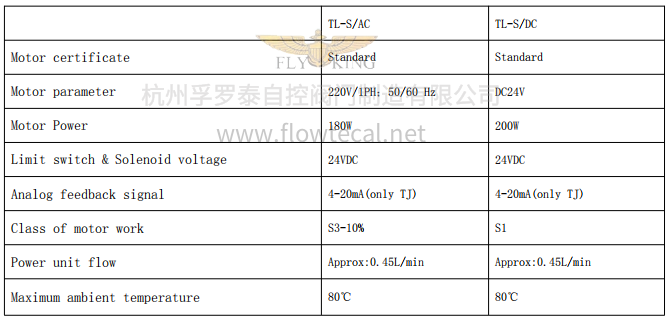

7）Electrical parameters
II Structure composition of TL-S micro electro-hydraulic actuator

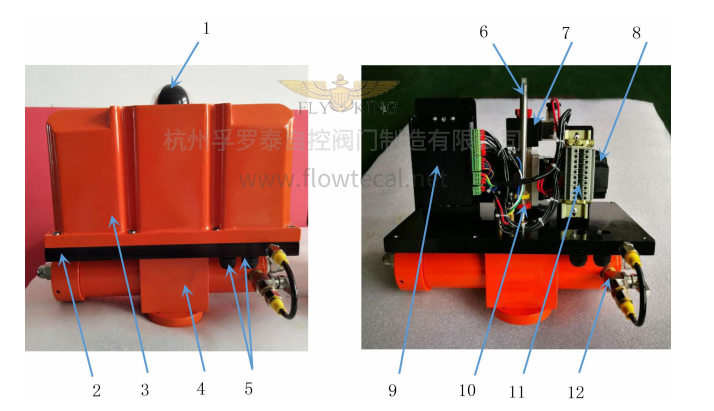

1、Valve position indication 2、Oil circuit board 3、LPU protective cover 4、Single acting hydraulic actuator 5、Stuffing box 6、Valve position indicating transmission rod 7、Two way solenoid valve 8、LPU power unit 9、Integrated circuit control board 10、Micro switch block assembly 11、Terminal block 12、Manual ball valve
III Hydraulic working principle of TL-S
TL-S hydraulic working principle
The control signal of the valve is from the remote control signal or the local button of the actuator electric control cabinet. Reset by the spring after power off.
1.Opening the valve: power unit TL-S get the opening valve signal, the solenoid valve is cut off the bypass oil circuit, the motor starts to drive the hydraulic pump to provide power oil to the actuator, until the actuator is fully opened; Then the actuator limit switch sends out the signal to cut off the motor power and sends "valve open" signal feedback to the integrated control cabinet. (Note: After the valve is opened, the solenoid valve needs to remain in a state of power to maintain the valve has been opened)
2.Closing the valve: power unit TL-S gets the closing valve signal, the solenoid valve is cut off, and the solenoid valve opens the bypass oil circuit, and the actuator is closed under the action of the spring force.Then the actuator limit switch sends out the "valve close" signal to the integrated control cabinet.
3. Intelligent control of valve: the actuator is equipped with a modulator signal generator and PLC under the control signal of 4 ~ 20mA. The actuator's stroke position is adjustable from 0° to 90°.
4.Three-break state valve position:When the hydraulic unit running in the "three-break" situation (poweroff, no signal, break pressure), the actuator closes the valve
5.When the valve is opened, the actuator is equipped with automatic pressure filling function to keep the valve position stable.
6.Valve jammed alarm: when get valve open/close valve actuator signals,appear stuck and can't fully open/close valve, the hydraulic unit motor will be cut off by a preset time relay in the electronic control cabinet and sent a valve jammed alarm at the same time.
7.Emergency in-place operation: The actuator is equipped with emergency operation interface. In the case of "three-break", the valve actuator can open or close the valve by portable emergency hand pump.
Ⅳ Dimensions and technical parameters
TL-S series electro-hydraulic actuator (angle stroke)
VI Schematic diagram of electrical wiring

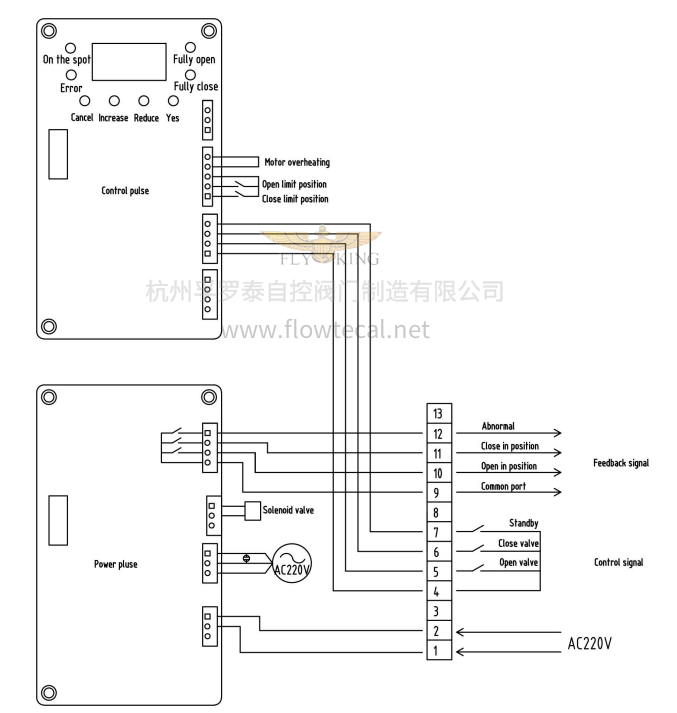

Schematic diagram of electrical wiring/ AC220V Motor Unit
V Remarks
1.The power unit AC220V is the S3 working system; the DC24V is the S1 working system.
2.Before installation, the hydraulic components such as cylinders, oil pipesand joints must be cleaned without any impurities.
3.The viscosity of hydraulic oil should be 15~68CST. It should be clean and free of impurities. It is recommended to use 32# hydraulic oil.
4.The hydraulic power unit is suitable for horizontal or vertical installation.
5.After starting the operating system for the first time, immediately check whether the oil in the oil tank is sufficient.
6.After the first 100 hours of system use, the hydraulic oil should be replaced and the hydraulic oil should be replaced every 3000 hours.
TL-S series of micro single acting electrohydraulic linkage actuators ( Download )
